Pneumatic Time Relay for Compatible Contactors

Pneumatic time relay suitable with series CONT/ contactors.

Split Quantity: 10

Carton Quantity: 200

Code: LADT2,LADT4

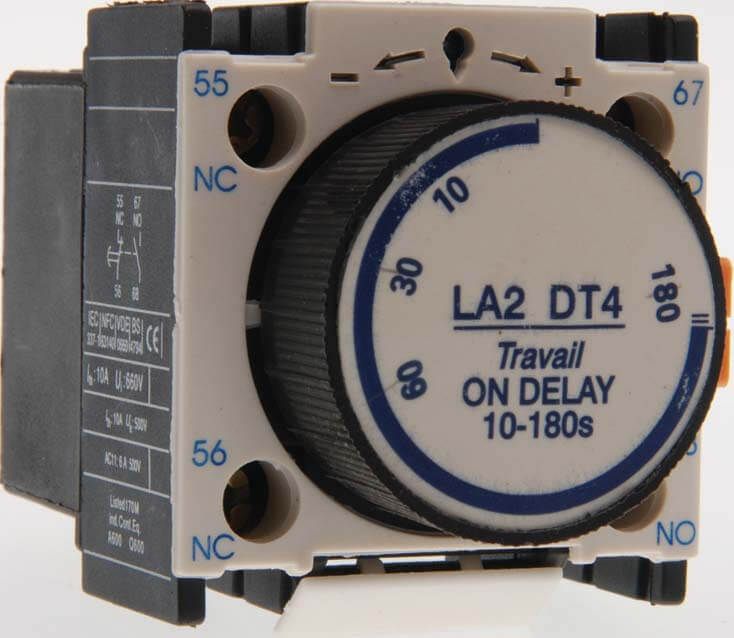

LADT4 : Pneumatic Time Relay 10-180sec

LADT2 : Pneumatic Time Relay 0.1-30sec

The coil: high quality copper wire.

Electricity Type: AC

Rated frequency: 50HZ/60HZ

Number of the delay contacts: NO+NC

LADT2 Delay Range: 0.1~30S

LADT4 Delay Range: 10~180S

Material: plastic material

Application: Time delay Auxiliary contact blocks are installed at the top of control relay or AC contactor for expanding the couples of auxiliary contacts points. Owing to adopting the contacting functions of sliding friction, the item can be self-cleaning & ensure the electric circuit to be reliable

Pulset is a manufacturer and wholesale supplier of the quality contactor, If any query please call, Pulset is for quality electrical item supplies anywhere in the world, especially in Australia.
