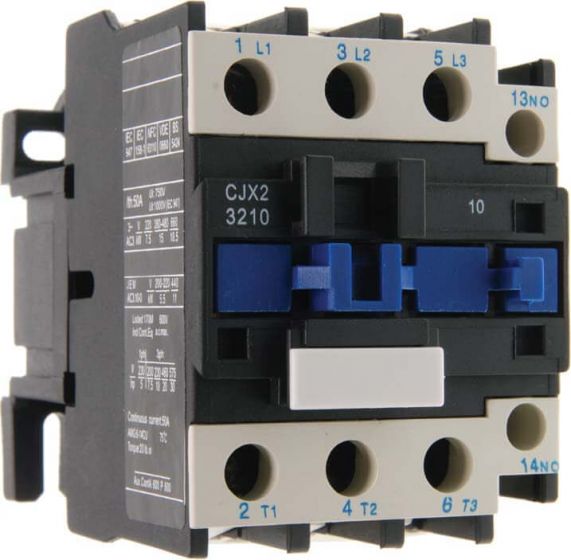

240V / 440V Contactors 9A - 75A

660V AC contactors rated up to 95A and 50 or 60Hz. Suitable for making, breaking and frequently starting AC motors.

Combined with the auxiliary contact block, timer delay & machine-interlocking device, it becomes the delay contactor, mechanical interlocking contactor and star-delta starter.

With the thermal relay, it combines into the electromagnetic starter.

Available in 20, 25, 32, 40, 50, 60, 70 & 75Amp.

Also available is a CONT/D2508 which has 2 N/0, 2 N/C contactors.

Split Quantity: 1

Carton Quantity:

CONT/D0910, CONT/D1210, CONT/D1810, CONT/D2510, CONT/D2508, CONT/D3210 - 50PCS

CONT/D4011, CONT/D5011, CONT/D6511  - 20PCS

CONT/D0901, CONT/D1201, CONT/D1801, CONT/D2501 - 50PCS

240V / 440 V Contactors 9A - 75A are available in following model :

240V Contactor - 25A, 240V Contactor - 25A, 240V Contactor - 32A, 240V Contactor - 32A, 240V Contactor - 40A, 240V Contactor - 50A, 240V Contactor - 60A, 240V Contactor - 70A, 240V Contactor - 75A,

240V Contactor - 110A - Discontinued

240V Contactor - 125A - Discontinued

AC3 Contactor Rating is shown in the code , For Example : CONT/D0910. The D09 in the code represents AC3 9amps.

For Example CONT/D1210. The D12 in the code represents AC3 12amps.
